PROTEUS-Essential

$1,590.00

Optional Apps

Apps below can be purchased at anytime in the future.

Their absence has no effect on system ability to overlay text, graphic, and communication i.e. parse NMEA-0183, ASCII Sentences, etc.

*In stock and ready to ship within 24 hours

Proteus-Essential contains all the basic features of Proteus-Lite, plus the ability for overlaying telemetry data, and apps, widgets, device drivers, ethernet, and much more!

Category:

Description

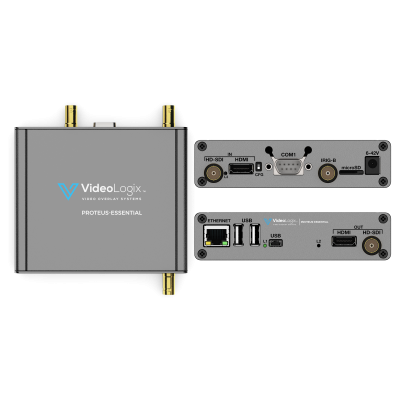

Proteus-Essential is a high performance stand-alone High-Definition (HD) and Standard-Definition (SD) video overlay system. It overlays crisp, texts, graphics, GPS, and telemetry data on live video. It also accepts NMEA sentences via RS232 & Ethernet. Proteus-Essential includes Apps, widgets, device drivers, and more.

Contents:

Device

  • Proteus-Essential
    • Texts, Graphics, Time/Date, GPS data
    • CSV sentences via RS232 & Ethernet
    • NMEA sentences via RS232 & Ethernet
    • APPs + Widgets + Device drivers
    • 2x Quadrature inputs, 4 x Analog inputs
    • IRIG, NPT time
    • MEMS based Compass, Gyroscope
    • 50+ Drawing commands via RS232/Ethernet
    • Superimpose composite video input over HD video input

Cables, Adapters, and Accessories

  • 1 Micro USB to USB Cable
  • 1 Full power supply with international plug adapters
  • 1x USB Keyboard

Additional information

Weight 4.0 lbs
Dimensions 6.5 x 4.5 x 1.25 in
ROV App (+ $200)

Yes, No

Aerial App (+ $200)

Yes, No

Bipolar Analog Inputs (+ $200)

Yes, No

Quadrature Decoder (+$200)

Yes, No

Geotagging App (+ $500)

Yes, No
