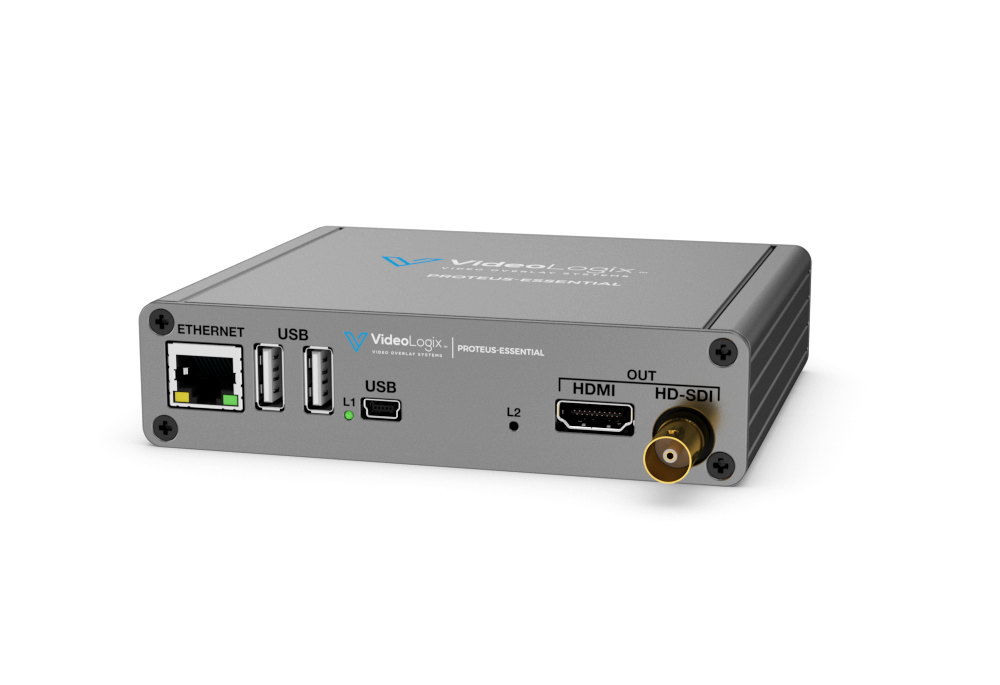

PROTEUS

ESSENTIAL

The primary purpose of PROTEUS-ESSENTIAL is to provide the ability to insert text, images, and data (GPS, NMEA 0183, Barcode scanner) and the ability to insert data from NMEA 2000 sensors, CSV sentences, Quadrature inputs, Analog inputs, IRIG time, etc. into an incoming HD & SD video.

Numerous apps (Reticle, Compass, XY Measurement, Sliders, ROV Situation awareness, Aerial Situation Awareness, etc.) have been developed to enhance this product.

See our brief tutorial video.

Price: $1,645.00 USD

LEARN MORE
BUY

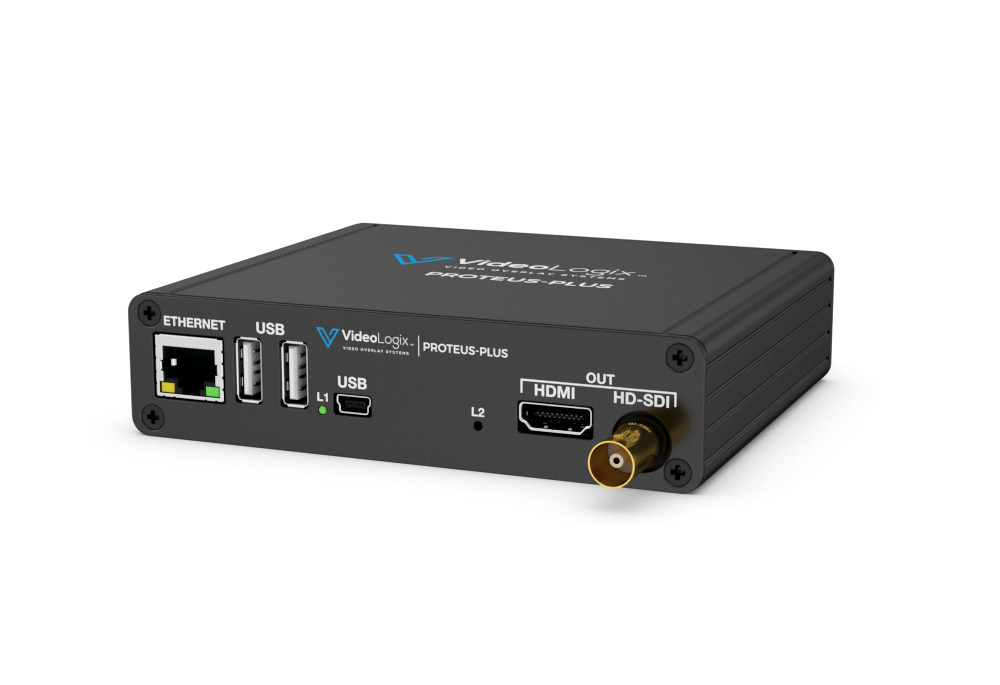

PROTEUS

PLUS

PROTEUS-PLUS includes all the features of PROTEUS-ESSENTIAL and the ability to create geotag media.

Geotagging is the process of syncing geographical data such as latitude, longitude, time, date, video time code (VTC), altitude, bearing, gyroscope pitch, roll & yaw, etc. to video.  The process also produces a geotagged media (KML file) that is synchronized to video and can be viewed in Google Earth to see the exact locations where videos were taken.

See our brief tutorial video.

Price: $1,695.00 USD

LEARN MORE
BUY

PROTEUS Specifications.

ESSENTIAL PLUS
General Features:
Full High Definition Video Overlay
Stand-alone operation i.e. no PC required
Built-in user interface for inserting overlay parameters via USB keyboard
Overlay texts such as user titles, time, date
Overlay PNG & JPG images/Logo
Overlay data from any GPS modem ($GPRMC, $GPGGA,$GPGGL, $PTSAG, etc.)1
Overlay data from any NMEA 0183 sensors ($GPWPL, $SDDPT, $SDDBT, $WIMTW, $WIMWV, $VNINS, etc.)
Overlay data from NMEA 2000 sensors (PGN 129029, 129025, 128259, 130323, 128267, …)
Overlay values from CSV sentences received via RS232, USB, Ethernet (UDP)
Overlay IRIG-B
Built-in Tilt (Pitch & Roll) sensors
Jam Sync Timecode with GPS, IRIG, RTC
Over 30 drawing commands through RS232, Ethernet, USB
User configurable fonts
Battery backed up real time clock (RTC)
Per pixel alpha blending
1920 x 1080 OSD overlay resolution
Video:
HD-SDI input (Not suitable for analog HD video such as SplashCam camera)
HD-SDI output
HDMI input
HDMI output
Composite input (Viewable only as PIP over HD video input)
1080i @ 50, 59.94, 60 Hz
720p @ 50, 59.94, 60 Hz
1080p @ 23.98, 24, 25, 29.97, 30 Hz
480i (NTSC), 576i (PAL)
Fast video input to output delay i.e. 0.5 μs (microseconds)
Communication ports:
2 x RS232
1 x USB2.0 Device
2 x USB2.0 HOST
1 x CAN
1 x Ethernet 10/100 (Static or DHCP IPv4 addressing)
Additional features:
Analog Inputs: Convert analog inputs to speed, depth, pressure… 2
Quadrature Inputs: Convert count to distance, speed…
Supported Devices: GD Cineflex, Bar code scanners, VectorNav GPS/INS, Smartmicro radar3
Graphics Widgets: Slider, Compass4
Built-in Apps: XY Measurements, Reticle, ROV situation awareness, Aerial situation awareness, Count up/down timer5
Generate KML file with multiple user defined place markers for Google Earth: Geotag, Georeference6 —
Design + Dimensions:
Box Dimensions (mm) 125 x 106 x 30
Weight (1lb)
Power (6-42VDC, 4W)
2-year warranty
Operating Temperature Range: 0-65°C

Price:

$1,645

$1,695

Analog HD video must be converted to HDMI using SeeEyes SC-MAC02U converter

1GPS modem is optional ($100). User can connect own GPS modem to RS232 port.
2 Maximum input range: 3.3V
3 ROV situation Awareness, Airplane Situation Awareness
4 Sliders, rolling compass, circular compass, Count up/down timers, XY measurement, reticle
5 Vector NAV IMU, Cineflex, Smartmicro radar, POS laser scanner
6 Generates KML file for Google Earth with on-the-fly selectable icon for each placemark. Each placemark has GPS, Gyroscope, Video Time, speed, course, etc.

Unique Features of PROTEUS that competitive products DO NOT offer:

  • HDMI input/output (Not Suitable for analog HD Video such as SplashCam camera)
  • Composite input (Viewable only as PIP over HD video input)
  • Cross converts HD-SDI ↔ HDMI
  • Simultaneous HD-SDI & HDMI output
  • HDMI input accepts camera or PC output
  • Built-in powerful & easy to use Graphical User Interface. Anyone can fully configure PROTEUS with a keyboard
  • Built-in Device Drivers for many devices such as VN IMU, Cineflex, GPS modem, barcode scanner. 100% Plug & Play
  • Fully configurable without a PC or raspberry pi
  • Fully operational without a PC or raspberry pi
  • 2 x Quadrature decoder
  • 4 x Analog inputs
  • 6 x Digital inputs
  • IRIG-B input
  • Jam Sync Timecode with GPS, IRIG, RTC
  • Insert data from NMEA-2000 sensors via CAN
  • Built-in Tilt (Pitch & Roll) sensors
  • 1 x Ethernet interface. Configurable as DHCP or static.
  • Supports UDP and TCP protocols
  • 2 x USB Host (used for keyboard and Flash Drive)
  • 1 x USB Device (enumerate as COM port)
  • Numerous built-in apps i.e. ROV & AERIAL Situation Awareness, XY measurement apps, Reticle, Geotagging, KML
  • Numerous built-in widgets (sliders, compass, etc.)
  • Ability to store 16 different configurations on microSD
  • Fastest video input to output delay in the industry 0.5 micro-seconds
  • Simple upgrade path from PROTEUS-ESSENTIAL & PLUS via license.txt file
  • Wide range (6V – 42V) of input voltage
  • 2 Year warranty
