Proteus-IV Proteus-IV

HD + SD Video Overlay Device

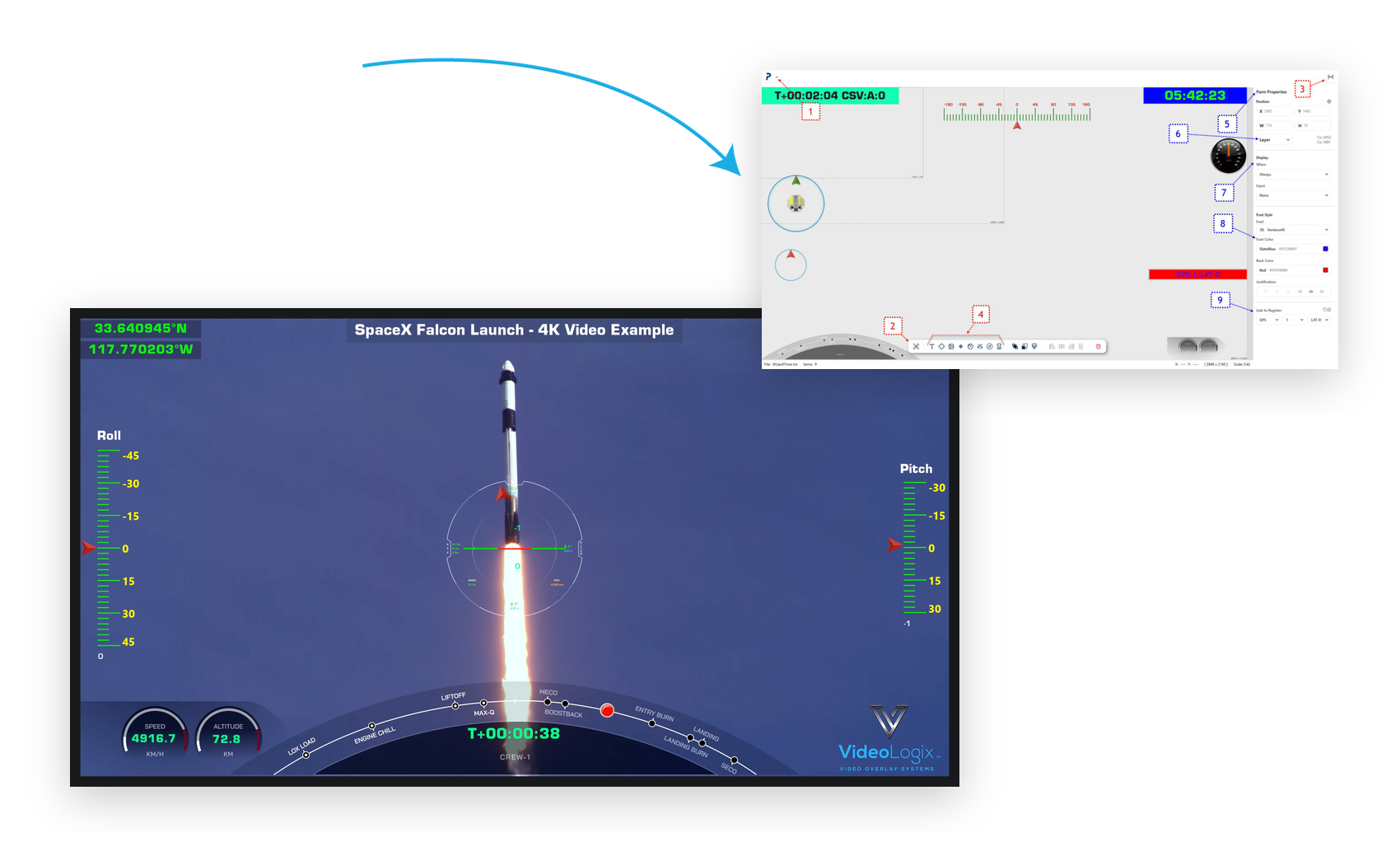

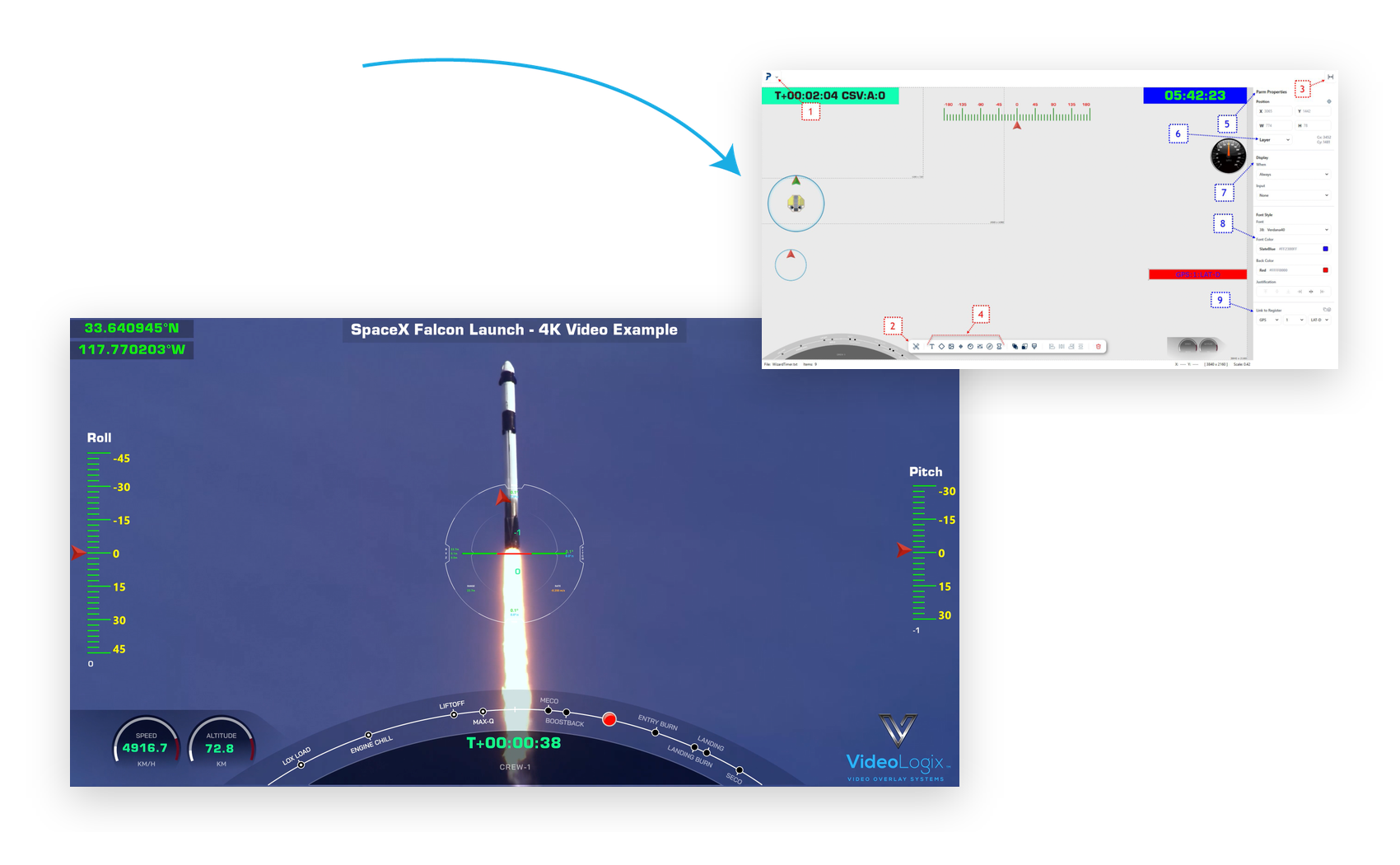

The Proteus is a high-performance stand-alone High-Definition (HD) and Standard-Definition (SD) video overlay system. It overlays crisp text, graphics and telemetry data on live video. From overlaying GPS information and custom title to more advanced graphic widgets, users can easily customize Proteus with external keyboard or simple RS232 commands.

Applications

Plug & Play Devices

Built-in Apps

    • Aviation
    • Subsea ROVs
    • Medical
    • Scientific
    • Industrial automation
    • Security & surveillance
    • Many more…
    • Any NMEA 0183 device
    • Any NMEA 2000 device
    • GPS modems
    • CSV sentences
    • VectorNav INS
    • General Dynamic Cineflex
    • Smartmicro Micro Radar Altimeter
    • APOS for HIPAP system HPR400 format
    • WinFrog Navigation
    • Any quadrature encoders
    • Any Analog voltage or 4-20ma sensor
    • IRIG-00x encoder
    • Barcode scanners
    • Many more…
    • Aircraft situation awareness
    • ROV situation awareness
    • Video marker measurement2
    • Dynamic or static crosshair/Reticle2
    • Geotagging with Google Earth interface
    • Count up/down timer (±10nsec)
    • Progress bars
    • Many more…

Features

    • Stand-alone operation i.e. no PC required
    • Fast boot ~500msec, compact & light weight
    • Low power. Input voltage 6-42V, 6 watts
    • Video input to output latency < 290 nsec
    • OSD resolution up to 1920 x 1080
    • Per pixel alpha blending (PNG images)
    • 1 x HD (HD-SDI or HDMI) video input
    • 2 x SD (1 x Composite, 1 x S-video) video inputs
    • Cross converts SDI ↔ HDMI ↔ S-video ↔ Composite
    • 8 x analog inputs1 (±10v, ±5v, ±2.5v, 5v, 10v)
    • Easily convert analog inputs to speed, depth, pressure…
    • 4 x quadrature inputs1
    • Easily convert quadrature count to distance, speed…
    • 8 x digital inputs1
    • Read & write HD-SDI Timecode (ATC)
    • Insert time (IRIG, GPS, RTC) into video Timecode (ATC)
    • 3 x RS232 ports1
    • 1 x RS488
    • 1 x CAN*
    • 1 x USB port (enumerates as COM port)
    • 802.11 wireless communication interface
    • Easy to configure with an external keyboard
    • Easy to configure via 50+ RS232 based commands
    • Built-in real time clock (RTC)
    • 16 User selectable & customizable fonts
    • Format & position data anywhere on screen

Video Formats

  • 1080i @
  • 1080p @
  • 1080PsF @
  • 720p @
  • NTSC 480i @
  • PAL 576i @
  • 50 / 60 Hz
  • 23.98 / 24 / 25 / 29.97 / 30 Hz
  • 23.98 / 24 Hz
  • 50 / 59.94 / 60 Hz
  • 60 Hz
  • 50 Hz

Other

  • Operating temperature
  • Power
  • Power up time
  • Dimensions
  • Weight
  • Warranty*
  • -40°C to +60°C
  • 6-42VDC, 6W
  • ~ 500 msec
  • 6.5” x 4.5” x 1.25”
  • 1.61 (lb.)
  • 2 years

Price

  • Proteus-IV
  • $1,695.00
1 Interface is optically isolated (3KVDC isolation capability). Signals are internal and accessible via Terminal Blocks
2 Control via external Joystick, Keyboard, RS232 commands, Quadrature encoders
3 Geotagging is the process of encoding the video with metadata such as latitude & longitude coordinates, time, altitude, bearing etc. Proteus also decodes metadata. This feature allows customers to watch a recorded video while viewing Google Earth for exact location video was taken
4 Analog inputs can be use to attach 4-20ma or voltage output sensors to measure Pressure, Temperature, Position, etc.
5 Quadrature inputs can be used to attach sensors with quadrature encoder to measure distance, speed, etc.
   Proteus does not support HDMI video with HDCP

*Warranty does not cover any product, which has been subject to neglect, unreasonable use, accident, and violation of operating instructions


Ready to get started? Need Product Customization?Contact Us!
